Precision CNC Machining for Lasers: Tolerances, Materials & Manufacturing Guide
In laser systems, even a micron-level deviation can affect beam alignment, optical performance, and system stability.
That’s why precision CNC machining for laser components is critical — not just for dimensional accuracy, but for thermal stability, optical alignment, and long-term reliability.
From optical mounts and laser housings to heat sinks and alignment bases, every component must meet strict tolerance and surface requirements.
In this guide, you’ll learn:
- How tolerances impact laser performance
- Best materials for laser components
- Common machining challenges and solutions
- A real manufacturing case study
- How to choose the right CNC machining supplier
Why Precision Matters in Laser Components
Laser systems depend on perfect optical alignment and thermal control. Even small machining errors can lead to:
- Beam deviation
- Power loss
- Thermal distortion
- Optical misalignment
Key tolerance requirements:
- Optical mounting surfaces: flatness within 0.01–0.02 mm
- Alignment features: positional accuracy within ±0.01 mm
- Threaded holes for optics: tight tolerance to avoid tilt
- Heat sink contact surfaces: high flatness for thermal transfer
- Surface finish: typically Ra ≤ 1.6 µm (or better for optical contact areas)
In high-end laser systems, mechanical precision directly affects optical performance.

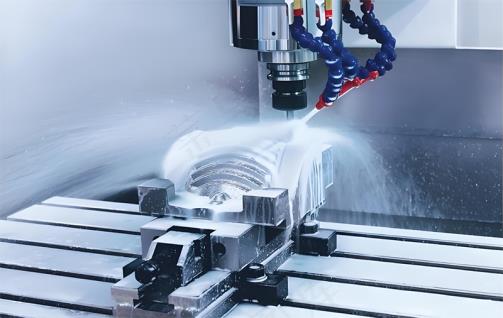

CNC Machining Process for Laser Components
1. DFM Review for Optical Assemblies
Before machining begins, a DFM review helps:
- Ensure alignment features are manufacturable
- Avoid tolerance stack-up in optical paths
- Improve thermal design compatibility
- Reduce machining risks
2. Material Preparation & Stability
- Use stress-relieved aluminum or stainless steel
- Ensure material homogeneity
- Avoid internal stress that causes distortion
- Pre-machine critical reference surfaces
3. Machining Critical Optical Features First
- Machine datum surfaces and optical interfaces early
- Maintain consistent reference throughout all setups
- Minimize re-clamping
- Control cutting forces to prevent deformation
4. Finishing & Precision Inspection
- Apply light finishing passes
- Control workshop temperature
- Use CMM and optical measurement tools
- Verify flatness, position, and parallelism
👉 Need help evaluating your laser component design?
Upload your CAD file and get a free DFM review with tolerance optimization within 24 hours.
Common CNC Machining Challenges in Laser Applications
Thermal Distortion
Laser systems generate heat, which can distort components.
✔ Solution: Use stable materials and control machining temperature
Optical Alignment Sensitivity
Even slight misalignment affects beam quality.
✔ Solution: Machine critical features in one setup
Thin-Wall Structures
Laser housings often require lightweight designs.
✔ Solution: Use low cutting force and staged machining
Surface Finish Requirements
Poor finish affects optical seating.
✔ Solution: Apply fine finishing passes and polishing if needed
Micro Features & Threads
Small threaded holes for optics are common.
✔ Solution: Use precision tapping and tool monitoring
Best Materials for CNC Machining Laser Components
Aluminum (Most Widely Used)
Applications: housings, mounts, heat sinks
- 6061-T6: good balance of machinability and stability
- 7075-T6: higher strength, less thermal stability
⚠️ Consider anodizing for surface protection
Stainless Steel
Applications: precision mounts, structural frames
- High rigidity and wear resistance
- Lower thermal conductivity than aluminum
Copper & Copper Alloys
Applications: heat sinks, thermal management
- Excellent thermal conductivity
- More difficult to machine
Engineering Plastics
PEEK
- High temperature resistance
- Used in insulating parts
Delrin (POM)
- Low friction
- Good dimensional stability
👉 Material choice must balance thermal performance, stability, and machinability.
Case Study: Machining Precision Laser Housing Components

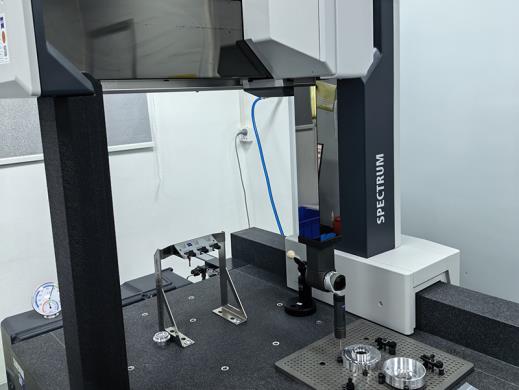

CMM inspection ensures optical alignment and dimensional accuracy.
A client producing laser modules faced:
- Optical misalignment during assembly
- Flatness deviation up to 0.05 mm
- Heat transfer inefficiency
- Rework rate ~10%
- Multiple setups causing datum shift
- Uneven material stress release
- Poor control of finishing process
- Tightened flatness to ≤0.02 mm
- Introduced datum-based machining
- Reduced setups from 3 to 1 (5-axis machining)
- Improved clamping strategy
- Controlled finishing temperature
👉 Improved alignment significantly enhanced laser output stability
👉 Have similar issues in your laser components?
Send us your drawing — our engineers will identify risks and suggest improvements before production.
Surface Finishing for Laser Components

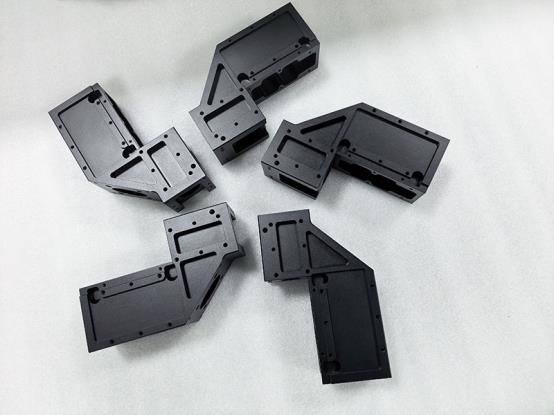

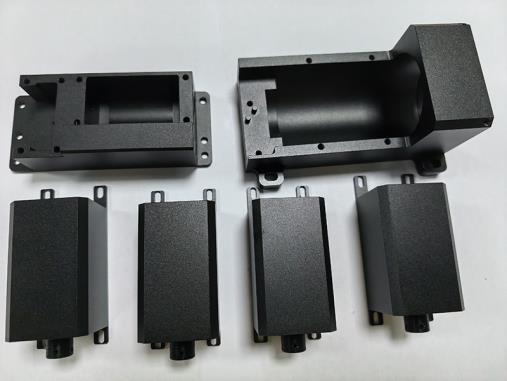

Black Anodizing (Common for Lasers)
👉 Surface finishing must be considered during machining design.
How to Choose a CNC Machining Supplier for Laser Parts
1. Optical-Grade Precision Capability
4. Material & Thermal Understanding
👉 A qualified supplier ensures both mechanical precision and optical performance.
Start Your Laser Component Machining Project
We can support from DFM to production.
✅ No MOQ
✅ Fast quotation
✅ Engineering support
👉 Upload your CAD file today and get a free technical review within 24 hours.
In laser systems, machining precision directly affects:
👉 The key to success is controlling precision throughout the entire machining process.
1. How do you maintain optical alignment in machined parts?
By machining critical features in a single setup using stable datum references.
2. Does anodizing affect laser components?
Yes, it changes dimensions and surface properties, so it must be considered during machining.
3. What is the best material for laser housings?
