Precision CNC Machining for Optical Components: Key Challenges and Best Practices
Introduction

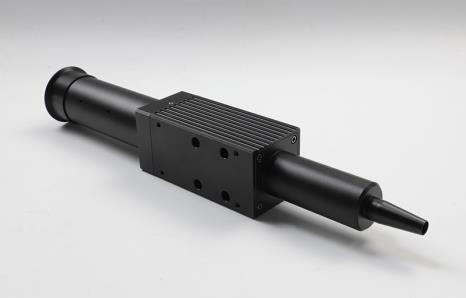

Optical instruments demand far higher precision, stability, and cleanliness than standard mechanical products. Whether it’s camera lens barrels, microscope mounts, laser housings, or LiDAR structures, metal components directly impact imaging quality and long-term system reliability.
Unlike conventional machining, CNC manufacturing for optical applications requires a specialized quality control mindset. This article outlines the most critical factors to ensure consistent, high-quality results in optical CNC machining.
Learn more about our Precision CNC Machining Services for optical applications.
1. Material Selection & Residual Stress Control
Common Issues
Even microscopic deformation can lead to optical axis deviation, astigmatism, or reduced resolution. Standard industrial aluminum or untreated steel may contain residual stresses that gradually release, causing warping over time.
Best Practices
- Use stabilized materials:
1. Free-machining stainless steel (303, 416)
2. Aerospace-grade aluminum (6061-T6, 7075-T651)
3. Low-expansion alloys (e.g., Kovar / 4J29)
- Avoid cold-drawn materials without stress relief
- Apply stress-relief heat treatment after rough machining
2. Dimensional & Geometric Tolerances
Common Issues
Optical components often require fit clearances of 5–20 microns. Standard tolerances (IT8–IT9) are insufficient.
Best Practices
- Critical fits: IT5–IT6 tolerance
- Non-critical features: up to IT8
- Clearly define tolerances on drawings
Critical Geometric Controls
- Coaxiality (optical axis alignment): ≤ 0.01 mm
- Face runout / perpendicularity: ≤ 0.008 mm
Datum Strategy
Use a unified datum system across design, machining, and inspection to prevent cumulative errors.
At XSH,Our tight tolerance machining capabilities ensure accuracy up to ±0.005mm.
3. Cutting Heat & Machining Deformation Control
Common Issues
Thin-wall parts (<1 mm) and slender components easily deform due to cutting force, clamping stress, and heat. Parts may pass inspection during clamping but deform after release.
Best Practices
- Use sharp tools:
1. Positive rake angle (+5° to +10°)
2. Small nose radius (R0.05–R0.1 mm)
- Apply high-pressure coolant (≥ 5 MPa)
- Use optical-grade cutting fluids (silicone-, chlorine-, sulfur-free)
Low-Stress Clamping
- Prefer collets or soft jaws
- Use custom fixtures for delicate parts
- Consider “turning instead of grinding” for better stress control
Step Machining Strategy
- Roughing allowance: 0.3–0.5 mm
- Finishing:
1. Small depth of cut (0.05–0.15 mm)
2. Fast feed (0.05–0.1 mm/rev)
4. Surface Finish & Burr Control
Common Issues
Burrs, scratches, chatter marks, or tool marks can damage optical coatings or introduce contamination.
Best Practices
- Mandatory edge treatment:
1. Minimum chamfer: C0.1 or R0.1
- Surface roughness:
1. Functional surfaces: Ra ≤ 0.4 μm
2. Non-critical surfaces: Ra ≤ 1.6 μm
- Integrate deburring into CNC toolpaths
- Use vibratory finishing or magnetic polishing for batch parts
Handling
Prevent part-to-part contact using trays or separators to avoid secondary damage.
5. Cleanliness & Contamination Control
Common Issues
Optical systems are extremely sensitive to oil, dust, and fibers. Even minor contamination can cause defects during coating or assembly.
Best Practices
- Mandatory cleaning process:
1. Ultrasonic cleaning (with detergent, ~60°C)
2. Multi-stage DI water rinse
3. Dehydration with alcohol
4. Hot air or nitrogen drying
- Do NOT rely on air blowing alone
Coolant Management
- Use optical-grade, low-residue fluids
- Monitor concentration and pH regularly
Clean Packaging
- Package in cleanroom conditions (recommended ISO Class 8 / Class 100,000)
- Use anti-static bags or vacuum packaging
- Include sulfur- and chlorine-free anti-rust paper
- Operators must wear nitrile gloves
6. Threads & Retaining Rings (Critical for Optics)
Common Issues
Loose threads can shift lenses; uneven surfaces may crack optics; burrs can scratch lens edges.
Best Practices
- Use fine threads:
1. Examples: M6×0.5, M8×0.75
- Tolerance class: 6H / 6g
Critical Requirement
- Face perpendicularity to thread axis: ≤ 0.008 mm
- Re-machine face after threading using thread axis as reference
Deburring
- Prefer thread milling over tapping
- Add secondary deburring (nylon brush or thread cleaner)
Assembly Check
Threads should engage smoothly by hand—no force fitting allowed.
7. Inspection & Process Control
Common Issues
Thin-wall parts deform under measurement force, causing inaccurate readings. Tool wear is often overlooked during production.
Best Practices
- Use low-force or non-contact measurement:
1. Air gauges
2. Vision systems
3. Laser measurement
4. CMM with constant-force probes
Environmental Control
- Measurement temperature: 20 ± 1°C
- Allow parts and tools to stabilize for at least 2 hours
Conclusion
High-quality CNC machining for optical components can be summarized into three core principles:
Stability
Control material selection, stress relief, and clamping to prevent deformation.
Cleanliness
Eliminate contamination through proper coolant selection, cleaning processes, and packaging.
Precision
Strictly control tolerances, geometric accuracy, and inspection methods.
By converting these principles into standardized SOPs (Standard Operating Procedures) and SIPs (Standard Inspection Procedures), manufacturers can consistently deliver high-performance optical components.
