Anodizing vs Micro Arc Oxidation (MAO): Differences and Applications
Anodizing vs Micro Arc Oxidation (MAO): Differences and Applications
Anodizing and Micro Arc Oxidation (MAO) are both surface treatment technologies used for metals such as aluminum, magnesium, and titanium to form a protective oxide layer.
They can be simply understood as a “standard version” and an “enhanced version”: anodizing is a mature and widely used process, while MAO is developed on its basis. By applying much higher voltage, MAO produces a ceramic coating with significantly superior performance.
Core Differences Between Anodizing and MAO
The key differences between these two technologies are summarized below:
|
Property |
Micro Arc Oxidation (MAO) |
Anodizing |
|---|---|---|
|
Process Principle |
Micro-arc discharge under high voltage generates extremely high temperatures (thousands of °C), forming a ceramic layer by melting and sintering the substrate |
Electrochemical reaction under electric field and electrolyte forms an oxide layer |
|
Process Parameters |
High voltage (>400V), high current |
Low voltage (<120V), low current |
|
Electrolyte |
Alkaline solution, more environmentally friendly |
Acidic solutions (e.g., sulfuric acid, chromic acid) |
|
Coating Structure |
In-situ grown ceramic coating (dense inner layer + porous outer layer) |
Self-grown porous oxide layer (honeycomb structure) |
|
Hardness |
Very high: 1500–2500 HV |
Standard: 300–500 HV; hard anodizing: 400–600 HV |
|
Wear Resistance |
Excellent |
Good |
|
Corrosion Resistance |
Excellent |
Good |
|
High Temperature Resistance |
Excellent |
Moderate |
|
Electrical Insulation |
Excellent |
Good |
|
Color Options |
Limited (black, gray, ceramic tones) |
Wide range, almost any color via dyeing |
|
Typical Thickness |
>100 μm, up to ~300 μm |
Type I: <3 μm; Type II: 2.5–25 μm; Type III: up to 150 μm |
|
Process Complexity |
Simple (no sealing required) |
More complex (multiple steps + sealing required) |
|
Cost & Energy |
Higher equipment cost and energy consumption |
Lower equipment cost but higher waste treatment cost |
Important Note on Color Differences

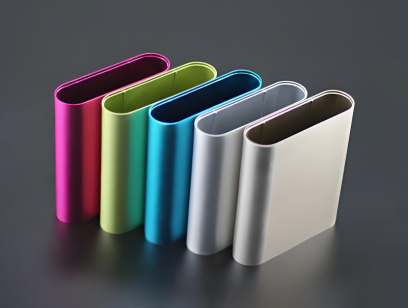

The porous structure of anodized coatings allows them to absorb dyes easily, enabling a wide range of vibrant colors.

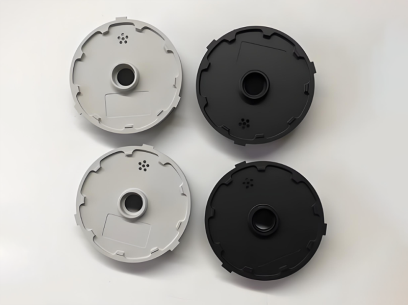

In contrast, MAO coatings are ceramic in nature, and their color mainly depends on the electrolyte composition. Therefore, color selection is much more limited.
How to Choose: Application Guide
Understanding the differences allows you to select the most suitable process based on your application.

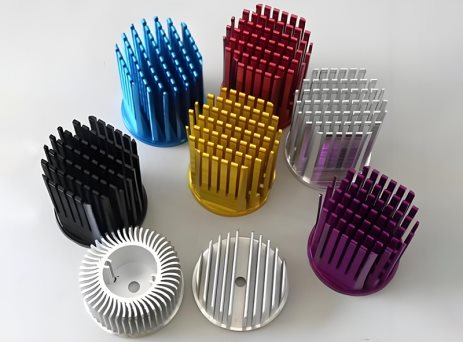

When to Choose Anodizing
Anodizing is a balanced solution combining functionality and aesthetics.
Best suited for:
- Applications requiring attractive appearance
- Consumer electronics (smartphones, laptops)
- Automotive interior parts
- Architectural aluminum components
- Precision and thin-walled parts
Key advantages:
- Wide color selection
- Lower cost
- Gentle process suitable for tight tolerance components
When to Choose Micro Arc Oxidation (MAO)
MAO is ideal for extreme performance requirements and harsh environments.
Best suited for:
- High-wear mechanical parts (pistons, cylinders, valves, sealing rings)
- Aerospace and defense applications
- Oil & gas and chemical industry components
- Medical implants (titanium joints, bone screws)
- Lightweight magnesium alloy parts
Key advantages:
- Ultra-high hardness and wear resistance
- Superior corrosion and heat resistance
- High dielectric strength
- Improved biocompatibility
Typical Applications
Anodizing Applications
- Smartphone metal frames
- Laptop housings
- Aluminum doors and windows
- Cookware
- Automotive wheels
MAO Applications
- Aerospace structural components
- Military equipment parts
- Petrochemical pipelines
- Medical implants
- High-end sports equipment
Not Sure Which One Fits Your Project?
Choosing the wrong surface treatment can directly impact product performance, cost, and customer satisfaction.
That’s why our engineering team provides free DFM analysis and finishing recommendations based on your specific application.
Get Expert Advice for Your CNC Project
We specialize in precision CNC machining + surface finishing solutions, including:
✔ Custom anodizing (clear, black, hard anodizing)
✔ Micro Arc Oxidation (MAO / PEO)
✔ Tight tolerance machining (up to ±0.005 mm)
✔ Fast lead time (samples in 3–5 days)
Have a drawing or project in hand?
📩 Send us your CAD files or RFQ today.
Our engineers will help you:
- Select the best surface treatment
- Optimize cost and manufacturability
- Provide a fast and accurate quotation
Conclusion
Although anodizing and micro arc oxidation originate from similar principles, they serve different purposes:
- Anodizing focuses on aesthetics, cost efficiency, and general protection
- MAO emphasizes extreme performance, durability, and reliability
Choose anodizing for appearance and cost control
Choose MAO for high-performance and harsh environments
