PEEK Machined Parts for Medical & Industrial Applications



PEEK machined parts are widely used in industries where high performance, durability, and dimensional precision are essential. PEEK (Polyether Ether Ketone) is a high-performance engineering thermoplastic known for its excellent mechanical strength, chemical resistance, and thermal stability. These characteristics make it ideal for demanding applications in the medical, aerospace, automotive, semiconductor, and electronics industries.



The real advantage of PEEK lies in its machinability. Through precision CNC machining, manufacturers can produce custom PEEK parts with complex geometries, tight tolerances, and excellent surface finishes. This level of accuracy is especially important for critical components such as medical implants, aerospace structures, electrical insulators, and high-precision industrial parts.



This article explores PEEK machined parts in detail, including CNC machining techniques, material comparisons, key applications, machining challenges, cost considerations, and practical design recommendations for achieving stable, high-quality production results.



What Are PEEK Machined Parts?



PEEK machined parts are custom components manufactured from PEEK plastic using CNC machining processes such as milling, turning, drilling, and boring.



Compared with standard engineering plastics, PEEK maintains outstanding mechanical and chemical properties even under high temperatures and aggressive environments. This makes it an excellent choice for applications requiring long-term reliability and dimensional stability.



Key PEEK Material Properties

Property	Typical Value	Machining Relevance
Tensile Strength	90–100 MPa	Supports structural loads
Elastic Modulus	~3.6 GPa	Maintains rigidity
Melting Point	~343°C	Requires heat control
Continuous Use Temperature	~250°C	Stable under high heat
Chemical Resistance	Excellent	Suitable for harsh environments



Common PEEK Grades Used in CNC Machining

Different grades of PEEK are selected based on application requirements.

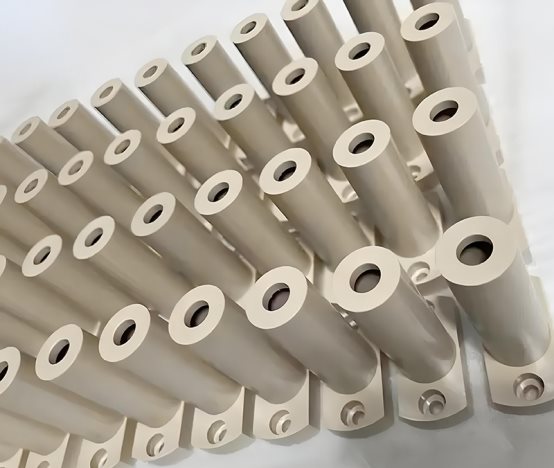

1. Industrial-Grade PEEK

Industrial-grade PEEK is commonly used for structural parts, wear components, seals, and insulating elements. It offers excellent strength and chemical resistance for general engineering and industrial applications.



Typical applications include:

• Bearings
• Bushings
• Structural supports
• Custom industrial PEEK parts



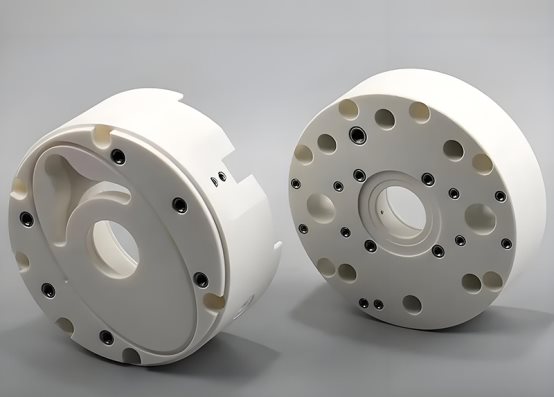

2. Medical-Grade PEEK

Medical-grade PEEK is widely used in implants and surgical instruments because of its biocompatibility and sterilization resistance.



It can withstand repeated sterilization cycles while maintaining mechanical integrity, making it suitable for long-term medical applications such as:

• Spinal implants
• Orthopedic devices
• Surgical tool components
• Medical guide cannulas



3. Glass-Filled & Carbon-Filled PEEK

Filled PEEK grades provide:

• Higher stiffness
• Improved dimensional stability
• Reduced thermal expansion



However, these materials also increase cutting tool wear during CNC machining. Manufacturers typically use carbide or diamond-coated tools together with optimized machining parameters to maintain precision and extend tool life.



CNC Machining Techniques for PEEK

PEEK is sensitive to excessive heat during machining. Poor machining conditions may lead to:

• Surface melting
• Burr formation
• Dimensional instability
• Internal stress deformation

Careful process control is therefore essential.



1. CNC Milling & Turning

CNC milling and turning are the most common methods for manufacturing high-precision PEEK machined parts.



To prevent overheating and distortion:

• Sharp carbide tools are recommended
• Moderate spindle speeds should be used
• Stable feed rates help maintain surface quality
• Heat buildup must be minimized



Proper cutting conditions help achieve:

• Tight tolerances
• Smooth surfaces
• Stable dimensions



2. Precision Drilling & Boring

Precision drilling and boring are critical for aerospace and medical components requiring accurate hole tolerances.



PEEK tends to produce continuous chips during machining, so proper chip evacuation is important to prevent:

• Surface scratches
• Bore inaccuracies
• Excessive heat generation



Boring is often performed after drilling to improve:

• Hole dimensional accuracy
• Surface finish quality
• Roundness consistency



3. Tool Selection & Cutting Parameters

Tool selection significantly affects machining quality and production stability.



Recommended tooling includes:

• Carbide cutting tools
• Diamond-coated tools for filled PEEK grades



Key machining recommendations include:

• Moderate feed rates
• Stable spindle speeds
• Controlled depth of cut
• Efficient chip removal

These measures help reduce heat accumulation and improve tool life.



4. Finishing & Surface Treatment

Post-machining finishing processes improve both appearance and functional performance.



Common finishing operations include:

• Deburring
• Chamfering
• Polishing



Benefits include:

• Improved surface smoothness
• Better assembly fit
• Reduced stress concentration
• Enhanced part reliability



Case Study: Medical-Grade PEEK Guide Cannula Machining

A medical device customer required a long, thin-walled medical-grade PEEK guide cannula with:

• High internal bore precision
• Excellent surface finish
• Stable dimensional consistency

The main challenge was controlling deformation caused by internal stress release during machining.



Key Challenges

• Thin-wall deformation during machining
• Internal stress affecting dimensional stability
• Difficulty maintaining geometry consistency
• Bore accuracy variation after unclamping



Machining Solution

A multi-stage CNC machining strategy was implemented to gradually release stress while maintaining dimensional control.



The process included:

• Rough machining for bulk material removal
• Semi-finishing to stabilize geometry
• Multiple finishing passes
• Intermediate unclamping and re-fixturing
• Optimized cutting parameters to reduce thermal distortion

This process significantly improved stability throughout the machining cycle.



Results

Results Achieved

Result	Outcome
Tolerance	ISO 2768-F compliant
Bore Accuracy	Stable and precise
Surface Finish	Smooth internal & external surfaces
Repeatability	Consistent batch production
Application Suitability	Approved for medical-grade use

If you are experiencing deformation issues with PEEK or other engineering plastics, our engineering team can help review your design and machining feasibility before production.



Advantages of PEEK Machined Parts

1. High Strength-to-Weight Ratio

PEEK offers metal-like strength while remaining lightweight, making it ideal for aerospace and medical applications.



2. Excellent Wear Resistance

PEEK performs well in high-friction and continuous-motion environments.



3. Outstanding Chemical Resistance

It resists aggressive chemicals, solvents, and corrosive environments.



4. High Temperature Stability

PEEK maintains mechanical properties even under continuous high-temperature exposure.



Limitations of PEEK Machining

Despite its advantages, PEEK also presents several machining challenges.



1. High Material Cost

PEEK is significantly more expensive than standard engineering plastics such as Delrin or PMMA.



2. Increased Tool Wear

Filled PEEK grades accelerate cutting tool wear and increase tooling costs.



3. Heat Sensitivity

Improper machining conditions can cause:

• Deformation
• Surface defects
• Dimensional instability



Cost Considerations for PEEK CNC Machining

Several factors influence the total machining cost of PEEK components.



Major Cost Factors

1. Raw Material Cost

PEEK material itself is expensive compared with common engineering plastics.



2. Machining Time

Lower cutting speeds increase production cycle time.



3. Tool Consumption

Frequent tool replacement increases operating costs.



4. Prototype Testing

Prototype validation helps reduce production risk and avoid costly design errors.

Although PEEK machining is not a low-cost solution, its long-term performance often justifies the investment in critical applications.



Applications of PEEK Machined Parts

1. Medical Industry

Medical-grade PEEK is widely used in:

• Implants
• Surgical instruments
• Orthopedic devices
• Spinal components

Its biocompatibility and sterilization resistance make it ideal for long-term medical use.



2. Aerospace Industry

PEEK components help reduce aircraft weight while maintaining structural performance.

Common aerospace applications include:

• Brackets
• Cable insulation
• Structural supports
• Electrical protection components



3. Automotive Industry

PEEK is commonly used in:

• Bearings
• Seals
• Bushings
• Valve components

Its wear resistance and thermal stability improve durability in harsh operating conditions.



4. Electronics & Semiconductor Industry

PEEK offers excellent:

• Electrical insulation
• Dimensional stability
• Thermal resistance



Typical applications include:

• Connectors
• Semiconductor components
• Electrical insulators
• Precision electronic housings



PEEK vs Delrin vs PMMA

Property	PEEK	Delrin (POM)	PMMA (Acrylic)
Strength	Very High	Medium	Low
Temperature Resistance	Excellent	Moderate	Low
Chemical Resistance	Excellent	Good	Fair
Cost	High	Medium	Low
Machining Difficulty	Moderate	Easy	Easy



Tips for High-Quality PEEK CNC Machining

1. Control Heat Buildup

Excessive heat may cause softening and deformation.

Recommended measures:

• Moderate cutting speeds
• Controlled coolant usage
• Stable feed rates



2. Use Proper Fixturing

Stable workholding minimizes vibration and improves dimensional accuracy.



3. Monitor Tool Wear

Sharp cutting tools help maintain:

• Surface quality
• Dimensional consistency
• Machining efficiency



4. Perform Prototype Testing

Prototype machining helps identify:

• Heat deformation risks
• Tolerance issues
• Surface finish problems

before full-scale production.



5. Optimize Cutting Parameters

Balanced cutting conditions improve:

• Chip control
• Machining stability
• Repeatable production quality



Conclusion

PEEK machined parts play an important role in industries requiring precision, reliability, and long-term durability. Their ability to maintain strength under high temperatures and harsh chemical exposure makes them ideal for demanding engineering applications.



Successful PEEK CNC machining depends on:

• Effective heat control
• Proper tool selection
• Optimized cutting parameters
• Stable fixturing methods



When properly managed, manufacturers can achieve excellent dimensional accuracy, smooth surface finishes, and highly reliable part performance.

XSH Precision specializes in high-precision CNC machining of PEEK and other engineering plastics. With extensive machining experience and advanced CNC capabilities, we provide stable quality, tight tolerances, and reliable production support for medical, aerospace, semiconductor, and industrial applications.



Upload your drawings today for a free DFM review and machining evaluation.



FAQs

Q1. What is the lead time for CNC machined PEEK parts?

Typical lead times are:

• Prototype parts: 3–7 days
• Production orders: 2–3 weeks

Lead time depends on:

• Part complexity
• Tolerance requirements
• Material grade
• Surface finishing
• Inspection requirements



Q2. What are the challenges of machining thin-walled PEEK components?

Thin-walled PEEK parts may deform because of:

• Heat buildup
• Internal stress release
• Machining forces

Consistent wall thickness and optimized machining parameters help improve dimensional stability.



Q3. How should engineers choose between PEEK, Delrin, and PMMA?

Material selection depends on application requirements:

• PEEK: High-performance, heat-resistant, chemically resistant applications
• Delrin (POM): Cost-effective, low-friction mechanical parts
• PMMA (Acrylic): Transparent components requiring optical clarity

The best material choice depends on operating environment, performance requirements, and budget.
